In the context of piping solutions, the eccentric reducer is one of the most important elements that are necessary for the preservation of the stability and efficiency of the systems for the flow of fluids. These reducers facilitate change in the cross-sectional area of pipes of different sizes and minimize turbulence in the fluid. However, have you ever thought about how these important fittings are produced? Among the most effective technologies used in the production of these products is the cold drawing technology.
Understanding Eccentric Reducers

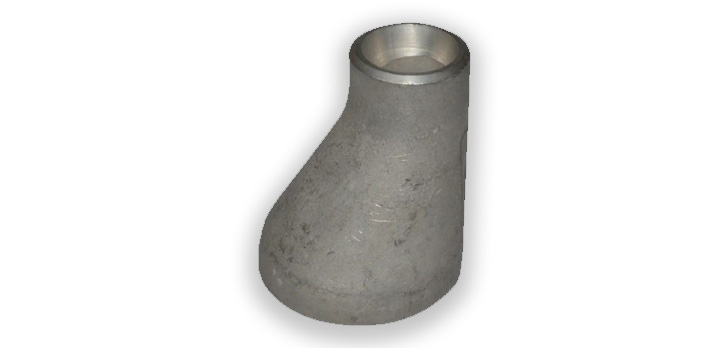

Now let’s try to explain what an eccentric reducer is and why it plays a crucial role before going deep into the explanation of cold drawing. An eccentric reducer is a kind of buttweld fitting that is used to join pipes of different dimensions. While concentric reducers have the same centerline, eccentric reducers have a centerline shift to the side, which is useful where the bottom line of the pipe has to be kept. It is most useful where there is a risk of fluid build-up and the need to maintain free flow in horizontal pipe runs.
Eccentric reducer fittings are widely applied in oil and gas, petrochemical, and power generation industries where the control of the fluid is critical. They are also applied in the use of pumps since they prevent cavitation by maintaining the flow of the piping system constant
The Role of Cold Drawing Technology
Cold drawing technology is a manufacturing process that has received much attention in the production of buttweld eccentric reducer pipe fittings of high quality. This process includes the passing of a metal rod or tube through a die with the aim of decreasing the diameter and increasing the length of the metal. Cold drawing is different from hot drawing in the sense that it is done at room temperature unlike in hot drawing where the metal is heated. The following are the advantages of this method making it a preferred method in the production of buttweld eccentric reducers.
The Cold Drawing Process in Detail
To truly appreciate the benefits of cold drawing technology, it’s essential to understand the steps involved in the process
- Selection of Raw Material : The process starts with the choice of the right material which is a metal rod or tube known as the raw material. The material to be used in the process depends on the characteristics that the final product should possess
- Annealing : The raw material is first normalized prior to the cold drawing process in order to reduce the strength of the material. Annealing is a process whereby the metal is heated to a certain temperature and then cooled gradually. This step is important as it softens the material, thus enabling it to be easily drawn through the die
- Cold Drawing : The annealed material is then drawn through a series of dies each of which has a smaller diameter than the previous one. When the material is being passed through the dies, the diameter of the material reduces while the length of the material increases. This is done until the required dimensions of the product are attained
- Straightening and Cutting : Cold drawn material may be slightly bent or warped after the process has been completed. There is a problem of curvature in the final product, which straightening machines are used to rectify. It is then shaped to the required dimensions for further processing
- Finishing and Inspection : The last process is the polishing of the buttweld eccentric reducer to give a better surface finish. The fittings are then inspected to make sure that they conform to the necessary standards after going through the above processes
Benefits of Cold Drawing for Eccentric Reducers
- Precision and Accuracy : Cold drawing has its advantages and one of them is the level of accuracy that it provides. During the manufacturing of eccentric reducer fittings, it is very important to control the dimensions in order to fit the reducer in the piping system. Cold drawing also enables manufacturers to keep close control over dimensions and thus ensure that all buttweld eccentric reducers manufactured meet the necessary standards. This precision is very important in industries where any variation may cause serious operational problems
- Enhanced Mechanical Properties : Cold drawing not only contributes towards the improvement of dimensional control but also the mechanical properties of the material. The process enhances the tensile strength and the hardness of the metal used to manufacture the buttweld fittings to prevent them from getting easily worn out. This is especially so in high pressure and corrosive fluids conditions where the fittings are applied at their most rigorous use. The mechanical properties of the cold-drawn buttweld eccentric reducer pipe fittings are improved to increase their durability and therefore, minimize the frequency of replacement of the pipe fittings in the piping system
- Superior Surface Finish : Cold drawing technology enhances the surface finish of the eccentric reducer as compared to the other technologies. The process leads to the formation of a polished surface that is free from roughness and unevenness that may be present on the surface of the fitting before the process is carried out. A smooth surface of the pipe will help in reducing the drag force between the fluid and the pipe hence reducing energy losses. Also, the enhanced surface finish enhances the ability to clean and maintain the fittings, thus increasing their durability
- Material Versatility : Cold drawing technology can be used for almost all types of materials such as carbon steel, stainless steel and alloy steel. This versatility makes it possible for manufacturers to develop eccentric reducer fittings that suit the various needs of various industries. This is because no matter the high strength of carbon steel, the corrosion resistance of stainless steel or the heat resistance of alloy steel, cold drawing guarantees that the material properties required are achieved in the final product
Recent Technological Advancements and Innovations in Cold Drawing
The field of cold drawing has seen several technological advancements aimed at overcoming the challenges and improving the efficiency of the process
- Advanced Lubrication Techniques : New developments in the lubrication system have gone a long way in minimizing the contact between the metal and the die hence enhancing the surface finish of the material and minimizing the wear of the tools. These advanced lubricants also improve the material’s durability and thus make it possible to cold draw a number of materials that were earlier deemed difficult to do so
- Automated Process Control : Advanced cold drawing processes are characterized by the use of automatic systems to track and control the process parameters in real-time. These systems help in maintaining the temperature, drawing speed, and die conditions at their best level to avoid the formation of defects and to get the best quality of buttweld eccentric reducer pipe fittings
- High-Performance Tooling Materials : Advances in tooling materials, for instance the use of harder wear resistant alloys and coatings have increased the useful life of dies and the frequency of tooling change. This advancement also helps to reduce the overall cost of production while at the same time improving the quality of the cold-drawn eccentric reducers
- 3D Simulation and Modeling : The use of 3D simulation and modeling in the design of cold drawing processes has allowed engineers to predict and mitigate potential issues before they occur. These tools enable the optimization of die geometry, material selection, and process parameters, leading to more efficient and reliable production of buttweld fittings
Conclusion
Cold drawing technology has revolutionized the production of buttweld eccentric reducer pipe fittings. Its ability to produce high-quality, precise, and durable fittings makes it an indispensable process in the piping industry. As industries continue to demand more reliable and efficient solutions, the role of cold drawing in the manufacturing of eccentric reducer fittings is set to become even more significant
