The Essential Guide to Hex Nut Sizes

Hex nut fasteners are used in different industries to secure the components and are very vital in the process. These are the humble parts that are often overlooked in many assemblies but they are the ones that keep everything in place in various circumstances. In this comprehensive guide, we will explore hex nuts in general and then discuss their sizes and uses in Nufit flanges.

Understanding Hex Nuts and Their Importance

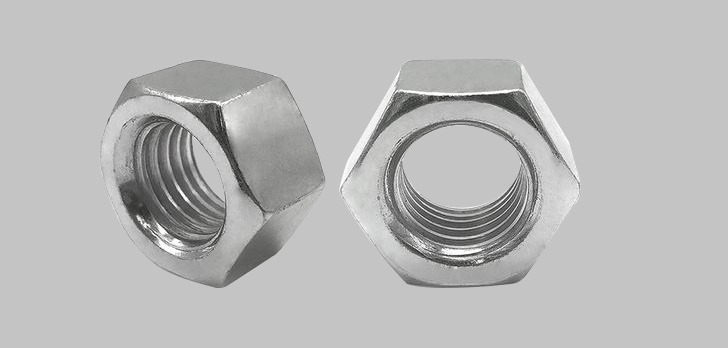

Hex nut is a nut that has six flat surfaces and is used together with a bolt or a threaded rod to fasten two or more parts. The hexagonal design enables the nut to be held and tightened using a wrench and is among the most popular fasteners in numerous industries.

Hex nut fasteners are essential in a wide range of industries including construction, automotive, plumbing, aerospace and many others. They are available in different sizes and each size is designed for a particular job so that regardless of the need, there is always a hex nut that will be ideal for the job

The Different Sizes of Hex Nuts

Hex nuts are available in many sizes, which are usually measured in terms of the nut’s diameter and the distance between the threads. These sizes are standard to allow compatibility in different manufacturers and industries as well. The hex nuts used for Nufit flanges need to be sized appropriately because it impacts the strength of the assembly

Standard Hex Nut Sizes

• Small Hex Nuts (M1 to M10) :
  • Diameter : 1mm to 10mm
  • Common Uses : Electronics, small machinery, and light-duty applications
• Medium Hex Nuts (M12 to M20) :
  • Diameter : 12mm to 20mm
  • Common Uses : Automotive, mid-sized machinery, and general construction
• Large Hex Nuts (M22 to M36) :
  • Diameter : 22mm to 36mm
  • Common Uses : Heavy machinery, large structures, and industrial applications
• Extra-Large Hex Nuts (Above M36) :
  • Diameter : 38mm and above
  • Common Uses : Specialized heavy-duty applications, such as bridges, large-scale construction, and industrial flanges

Hex Nut Fasteners for Nufit Flanges

Nufit flanges are used in piping systems because of their strength and performance. The right size of hex nut fasteners is crucial in the right installation and operation of these flanges. Hex nuts used with Nufit flanges must also be compatible with the bolts and the flange size to guarantee a tight and leak proof seal

Key Considerations When Choosing Hex Nuts

• Material Compatibility : Make sure that the hex nut is made of the same material as the flange and bolt to avoid corrosion and to have a long life span. Some of the most frequently used materials are stainless steel, brass, and steel that is coated with zinc
• Thread Type : Hex threaded nut types can be either coarse or fine. Coarse threads are usually applied in conditions where frequent assembling and disassembling are required, fine threads are more resistant and accurate
• Standards Compliance : Make sure that the hex nuts meet certain requirements of the international standards like HS 7318. This standard is applicable to a range of fasteners such as hex nuts and aims at providing quality and performance standards for them
• Size and Fit : The hex nut has to be of the right size for the bolt and flange to fit and work as intended. Standard sizing charts should be used in order to choose the right hex nut

Hex Fasteners in Different Industries

Hex fasteners, including hex nuts, are ubiquitous across numerous industries due to their versatility and reliability

Construction Industry : In construction, hex nuts are used in fastening beams, columns and other structural parts. They are suitable for construction and structural applications because of their high load-carrying capacity and good connection.

Automotive Industry : Hex nuts in automotive applications are applied to join engines, chassis, and other essential parts of automobiles. These fasteners are used in vehicles and their accuracy and hardness are vital for the safety and performance of the vehicle.

Plumbing and Piping : Hex nuts are used in plumbing and piping to join pipes and fittings together. These fasteners are very durable and provide leak-proof and long-lasting joints, which are very crucial in both domestic and commercial applications.

Conclusion

Choosing the right size of hex nut fasteners for Nufit flanges is essential for ensuring a secure and reliable assembly. By understanding the various sizes and their applications, you can make informed decisions that enhance the performance and safety of your projects

Whether you're working on a large construction project or a small machinery repair, the right hex nut can make all the difference. Remember to consider material compatibility, thread type, and standards compliance when selecting your hex fasteners. With this guide, you're now equipped with the knowledge to choose the perfect hex nut for your needs, ensuring that your Nufit flanges and other assemblies are as strong and durable as possible
