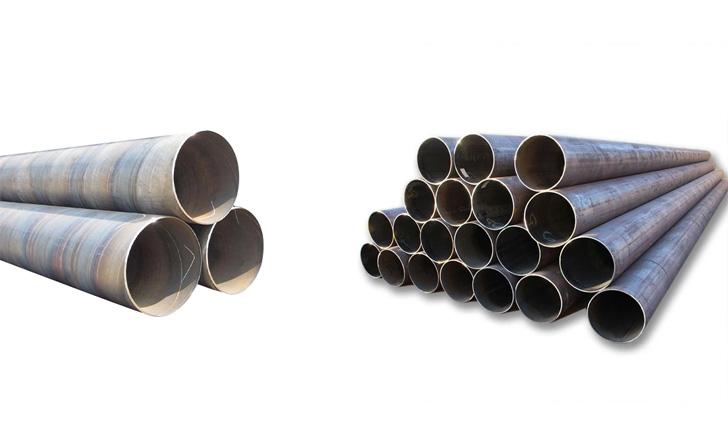

In the world of modern industry, the issue of a material's quality and its protection is one of the most crucial. In the construction of buildings such as skyscrapers, bridges, or even pipelines, the use of appropriate materials can be the determinant of success or failure. This is especially the case with LSAW pipes and tubes, which are used in many industries because of their high strength, durability, and flexibility. To retain these qualities, it is necessary to use strict testing procedures, and one of the most effective is ultrasonic testing. In this blog, we will discuss the features of ultrasonic testing for LSAW pipes and tubes, its importance, working, benefits, and uses.
Understanding Ultrasonic Testing
Ultrasonic testing (UT) is a non-destructive testing (NDT) method that uses ultrasonic waves to identify defects in the material. This method is most suitable for the inspection of metal structures and is therefore suitable for LSAW pipes and tubes. The process involves the transmission of ultrasonic waves into the material; when these waves reach an imperfection, such as a crack or inclusion, they are reflected back, hence the identification and assessment of the imperfectionc.
Why Ultrasonic Testing for LSAW Pipes and Tubes?
LSAW pipes are used in high pressure applications and in environments that are not friendly to pipes, hence their use in oil and gas, water transportation, and structural applications. However, the effectiveness of these pipes and tubes mainly depends on their structural features. This is where ultrasonic testing comes in handy. UT is more informative than other testing methods as it offers the internal structure of the material and helps to identify defects
The Principles of Ultrasonic Testing
The principle of ultrasonic testing is quite simple but very efficient at the same time. UT depends on the generation of high-frequency sound waves, normally in the range of 0.5 to 20 MHz, by means of the material under test. When these sound waves propagate through a medium that is homogeneous in nature, they do not get interrupted. However, if they come across a discontinuity, for instance, a crack, a void, or an inclusion, then a part of the wave is reflected back to the probe. The time that it takes for these waves to come back is then measured and studied to identify the flaw, its location, and its size. This principle makes it possible to detect internal defects that may affect the integrity of LSAW pipes and tubes
Methods of Ultrasonic Testing
There are several types of ultrasonic testing that can be used for the inspection of LSAW pipes and tubes, depending on the application and the need. Here are some of the most common methods
- Pulse-Echo Testing : This is the most common method of ultrasonic testing for LSAW steel pipes. In pulse-echo testing, one probe transmits ultrasonic pulses into the material. These pulses move through the material, and if they meet a defect, they bounce back to the same probe. The time between the pulse emission and its reflection from the flaw is used to determine the distance from the flaw and hence the precise location of the flaw
- Through-Transmission Testing : In this method, there are two probes, one is the transmitting probe and the other is the receiving probe. The transmitter emits ultrasonic waves through the material and the receiver records them on the other side. If the waves are interrupted by a defect, the receiver will be able to identify that the signal strength has been lowered. This method is particularly useful in the detection of large defects in LSAW tubes
- Phased Array Ultrasonic Testing (PAUT) : Phased array ultrasonic testing is an advanced method that uses multiple elements in a probe to send and receive ultrasonic waves. By controlling the timing of each element, the direction and focus of the ultrasonic beam can be adjusted electronically. This allows for a detailed inspection of LSAW pipes with complex geometries or welds, providing a more comprehensive analysis than traditional methods
- Time of Flight Diffraction (TOFD) : TOFD is a highly accurate method that uses the diffraction of ultrasonic waves around the edges of a flaw to detect and size it. This method is often used in conjunction with other ultrasonic testing methods to provide a detailed assessment of LSAW steel pipes, particularly in critical applications where the highest level of accuracy is required
Characteristics of Ultrasonic Testing in LSAW Pipes and Tubes
- Precision and Accuracy : The most important feature of ultrasonic testing is its accuracy. UT can identify slight imperfections in LSAW pipes with a high degree of precision. This is important because any imperfection in a pipe can result in severe failures in high-risk applications. The fact is that the identification of the exact location of the defects enables one to make the necessary repairs and thus preserve the overall stability of the structure
- Depth Penetration : Ultrasonic testing is capable of testing through the thickness of LSAW steel pipes. This is especially true in thick-walled pipes, where external examinations may not being very revealing of internal defects. UT has a high penetration capability, which means that every part of the cross-section of the pipe or tube is examined without leaving any area
- Versatility : Ultrasonic testing is very flexible and can be used on different types of material and shapes. In the case of LSAW tubes, which may have different thicknesses and cross sectional shapes, UT can be made to cover all the areas of the tube. Due to this flexibility, it is considered as a suitable approach when testing various types of LSAW steel pipes
- High Sensitivity : UT is very effective in detecting small discontinuities, and therefore suitable for quality control of LSAW tubes. This sensitivity is important in cases where the pipes and tubes are exposed to pressure and other conditions that are unfriendly. It is always better to identify and rectify the minor defects that may lead to leakage, burst or failure in the system
\
- Real-Time Results : Another benefit of ultrasonic testing is that it provides real time results. The test results are available to the inspectors, and this makes it possible to make decisions on the LSAW pipes and tubes’ integrity in real time. This real-time feedback is especially useful in the industrial setting where there is little time to spare
- Non-Destructive Nature : As a non-destructive method, ultrasonic testing does not compromise the material being tested. This is especially important for LSAW steel pipes used in critical infrastructure, where maintaining the material's integrity is paramount. UT allows for thorough inspection without causing any damage to the pipes or tubes
- Cost-Effectiveness : While ultrasonic testing may initially seem expensive due to the advanced equipment and skilled operators required, it is cost-effective in the long run. By detecting flaws early, UT helps avoid costly repairs, replacements, or failures, which could have severe financial and operational repercussions
The Process of Ultrasonic Testing in LSAW Pipes and Tubes
The ultrasonic testing process for LSAW pipes and tubes typically involves the following steps :
- Preparation : The surface of the pipe or tube is made clean to allow the ultrasonic probe to make a good contact with it. A couplant, for example gel or water, is used to ensure that ultrasonic waves are transmitted into the material
- Inspection : The ultrasonic probe is put in contact with the surface of the LSAW steel pipe, and high-frequency sound waves are introduced into the material. These waves move through the material till they reach a surface or a defect, and then they bounce back to the probe
- Analysis : This is done by analyzing the reflected waves to establish the position, size, and type of defects. The data is displayed on a screen, which gives a view of the inside of the pipe or tube in question
- Reporting : Thus, in accordance with the results of the analysis, a report is created that contains information about the identified defects and their features. This report is used to come up with a decision on whether the pipe or tube is suitable for the intended application or not
Applications of Ultrasonic Testing in LSAW Pipes and Tubes
Ultrasonic testing is used in a number of industries where LSAW pipes and tubes are used. For example, in the oil and gas industry, UT is used to inspect pipelines that convey oil, gas, and other fluids over long distances. Likewise in the construction industry, UT is employed to verify the quality of structural parts fabricated from LSAW steel pipes
In the water transportation industry, pipes are usually exposed to corrosive environments and therefore, through ultrasonic testing, one is able to identify the corrosion and other defects that may affect the pipe. Furthermore, in the manufacturing industry, UT is used to inspect the LSAW tubes used in machinery, automotive parts, and other essential equipment
Conclusion
In conclusion, ultrasonic testing is an indispensable tool in ensuring the quality and reliability of LSAW pipes and tubes. Its precision, depth penetration, versatility, high sensitivity, real-time results, and non-destructive nature make it the preferred method for inspecting these critical components. By employing ultrasonic testing, industries can ensure the safety, durability, and performance of LSAW steel pipes, thereby preventing potential failures and safeguarding valuable infrastructure
